LED Frosted Glass G9

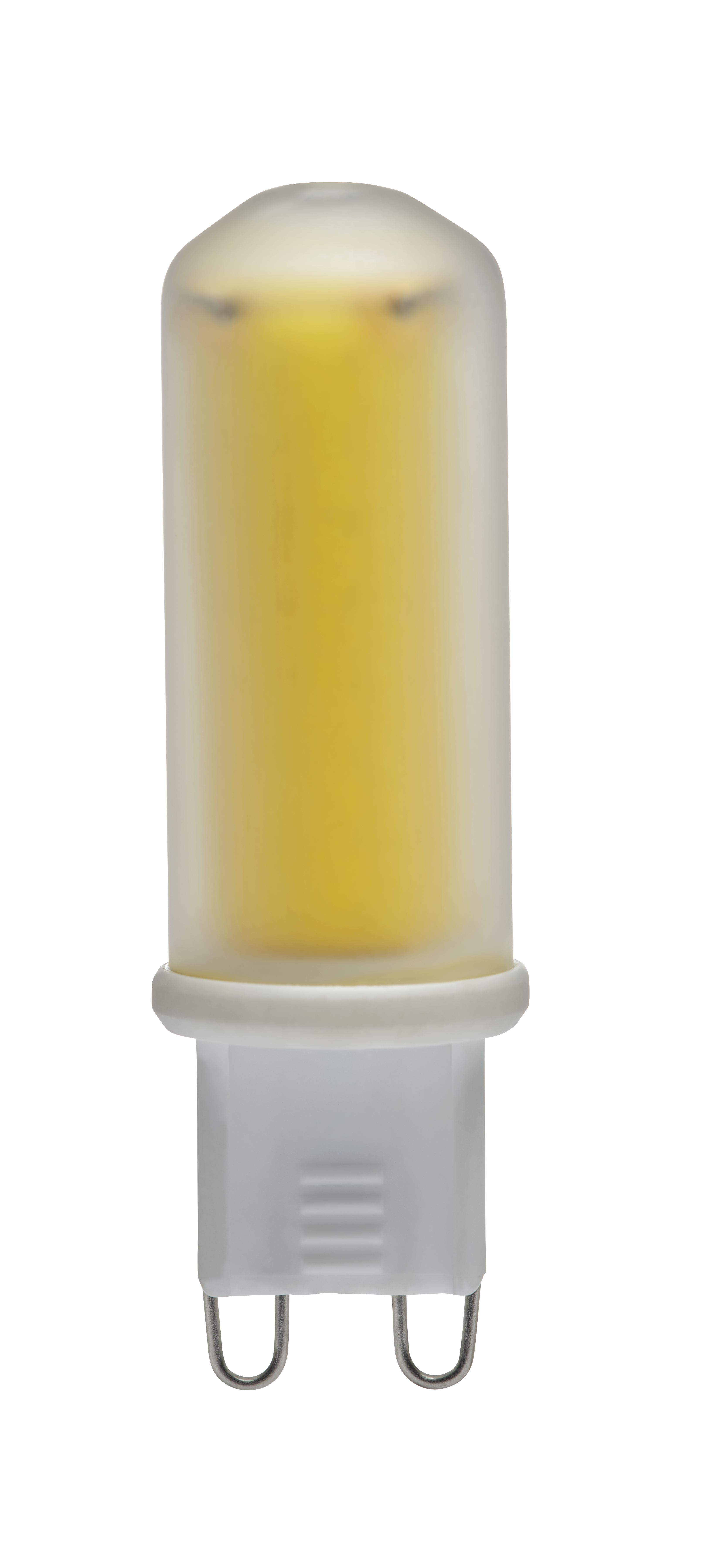

LED 3.5W Frosted Glass Dimmable G9 - 2700K

Code
61045
Technical Specification
Volts (V)
220/240
Cap
G9
Energy Rating
F
Our LED capsules are ideal for domestic and commercial applications & can be used in both open and closed fixtures.
Download Specification
Full Specification
Downloads
Name
LED 3.5W Frosted Glass Dimmable G9 - 2700K
Commodity Code
8539520000
EAN
5063695003256
Volts (V)
220/240
Cap
G9
Life Hours
15000
Beam Angle
330°
CRI (Ra)
95
Frequency (Hz)
50
LED Drive Current
18mA
Energy Consumption (kWh/1000h)
4
IP Rating
IP20
Energy Rating
F
Lumens per Watt (lm/W)
100
Height (mm)
56
Width (mm)
18
Length (mm)
56
Depth (mm)
18
Diameter (mm)
18
Electric Class
Class II
Power Factor
0.7
Individual Product Weight (kg)
0.0109
Inner Box Qty
10
Outer Box Qty
200
Inner Box Weight (kg)
0.1305
Inner Box Height (mm)
135
Inner Box Width (mm)
57
Inner Box Depth (mm)
74
Inner Box Volume
0.00056943
Outer Box Height (mm)
168
Outer Box Width (mm)
286
Outer Box Depth (mm)
310
Outer Box Volume
0.01489488
Outer Box Weight (kg)
0.27
Wattage (W)
3.5
Equivalent Wattage (W)
32
Colour Temperature (K)
2700
Single Box Weight (kg)
0.0114
Single box Height (mm)
67
Single box Width (mm)
25
Single Box Depth (mm)
25
Single Box Volume
0.000041875
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
350
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Dimmable
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
Yes
Decorative
Yes
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Linears
No
Skyline Target
No
Standard Deviation Colour Matching
6-step MacAdam ellipse
Sports Halls
No
CFL/HID Alternative
No
Merit Batten
No
Warranty
3 Years
