Firestay Duo Downlights

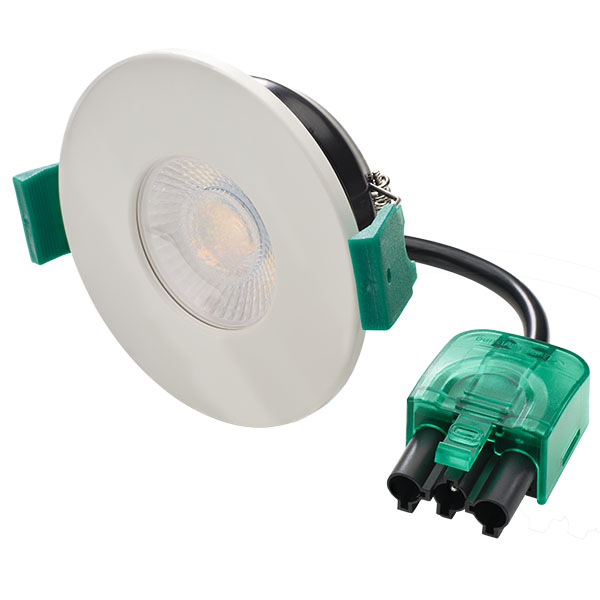

Firestay Duo 4/6W LED CCT Wattage Switchable Downlight

Code
11370
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
11370V2 - Firestay Duo 4/6W - 4 CCT & 2 Wattage Switchable LED Downlight View product
Technical Specification
Volts (V)
220/240
  • Firestay Certification: 30, 60 and 90 minute solid joist ceilings, 30 minute I-Joist & Metal Web ceiling systems
  • 8 in 1 Fixture: 4 colour temperatures, 2 wattages
  • Front CCT switch
  • White, Satin, Chrome, Brass, Antique Brass & Matt Black bezels available
  • Tool-Free termination
  • Must be completed with bezel accessory sold separately
Quantity
Download Specification
Description
Full Specification
Downloads

The Firestay Duo LED CCT is a High Output Downlight ideal for high ceilings or any project requiring high intensity light, 4 way colour and 2 wattages switchable straight out of the box.

With a 7 year product warranty, the front facing switch enables the user to seamlessly change the colour temperature (2700/3000/4000/6000K) to suit the mood of any space while the rear facing wattage switch enable you to instantly dictate the light level of any commercial or residential premises.

Name
Firestay Duo 4/6W LED CCT Wattage Switchable Downlight
Volts (V)
220/240
Life Hours
50000
Beam Angle
60°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
LED Drive Current
90mA
Energy Consumption (kWh/1000h)
6
IP Rating
IP65
Height (mm)
53
Diameter (mm)
90
Commodity Code
9405423100
EAN
5013588113708
Inner Box Weight (kg)
2.55
Inner Box Height (mm)
465
Inner Box Width (mm)
190
Inner Box Depth (mm)
110
Outer Box Height (mm)
485
Outer Box Width (mm)
218
Outer Box Depth (mm)
263
Inner Box Qty
10
Outer Box Qty
20
Individual Product Weight (kg)
0.215
Outer Box Weight (kg)
5.3
Outer Box Volume
0.02781
Inner Box Volume
0.00972
Lumens per Watt (lm/W)
104
Dimming Option
Leading & Trailing Edge (Trailing Edge Recommended)
Wattage (W)
4/6
Colour Temperature (K)
2700/3000/4000/6000
Candelas
565
IK Rating
IK07
Minimum Order Quantity
1
Single Box Weight (kg)
0.25
Single box Height (mm)
90
Single box Width (mm)
90
Single Box Depth (mm)
100
Single Box Volume
0.00081
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
Downlights
EDATA Product Range
Firestay Duo
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
415-620
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Photometric Data

Product Image
