Dura Double

Dura 40W LED Anti-Corrosive 4ft Double Batten - 4000K

Code
06728
Next Delivery
14/04/2025 - 192 items
Technical Specification
Volts (V)
220/240
Watts (W)
40
Colour Temp (K)
4000
Lumens (lm)
6630

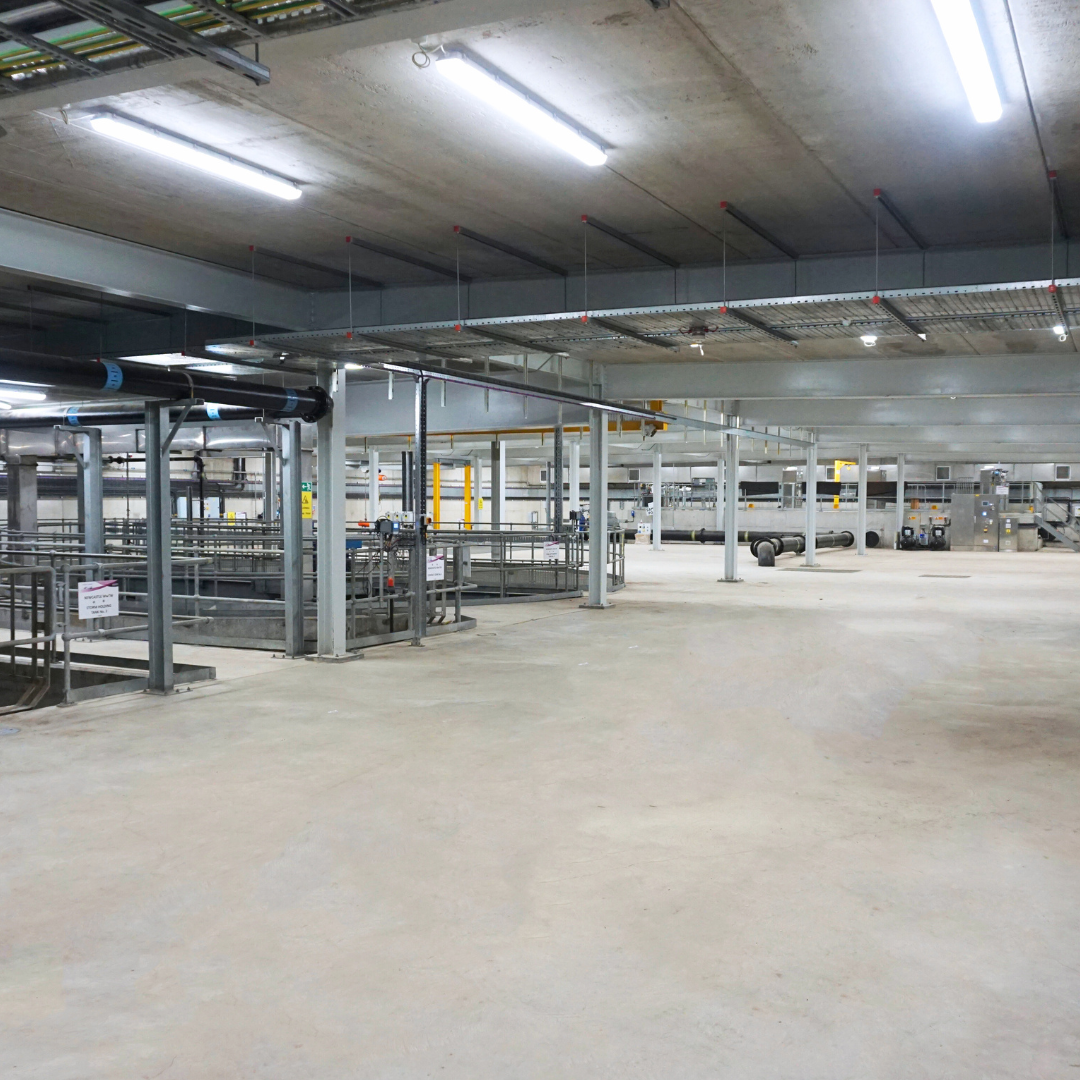

The Dura LED Anti Corrosive Batten is one of BELL’s flagship luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Download Specification
Full Specification
Downloads
Name
Dura 40W LED Anti-Corrosive 4ft Double Batten - 4000K
Volts (V)
220/240
Watts (W)
40
Colour Temp (K)
4000
Lumens (lm)
6630
Life Hours
50000
Beam Angle
128°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1080mA
Energy Consumption (kWh/1000h)
40
IP Rating
IP66
Commodity Code
9405423100
EAN
5013588067285
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.01629
Outer Box Qty
6
Height (mm)
90
Length (mm)
1263
Outer Box Height (mm)
1310
Outer Box Width (mm)
290
Outer Box Depth (mm)
320
Candelas (cd)
1600
Equivalent Watts (W)
90
Single Carton Height (mm)
1270
Single Carton Width (mm)
135
Single Carton Depth (mm)
95
Individual Product Weight (kg)
2.01
Single Carton Weight (KG)
2.26
Outer Box Weight (kg)
15.25
Plastic Packaging Weight (kg)
0.015
Outer Box Volume
0.12157
Impact Protection
IK10
Lumens per Watt (lm/W)
166
Power Factor
0.97
Electric Class
1
Driver Integral?
Yes
Depth (mm)
125
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Outer Carton Barcode
0672800000006
