Dura Single

Dura 25W LED Anti-Corrosive 5ft Single Batten with Microwave Sensor - 4000K

Code
06714
Technical Specification
Volts (V)
220/240
The Dura LED Anti Corrosive Batten is one of BELL’s flagship luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Download Specification
Full Specification
Downloads
Name
Dura 25W LED Anti-Corrosive 5ft Single Batten with Microwave Sensor - 4000K
Volts (V)
220/240
Candelas
900
Life Hours
50000
Beam Angle
137°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
600mA
Energy Consumption (kWh/1000h)
25
IP Rating
IP66
Commodity Code
9405423100
EAN
5013588067148
Outer Box Qty
4
Height (mm)
90
Length (mm)
1530
Outer Box Height (mm)
1610
Outer Box Width (mm)
210
Outer Box Depth (mm)
220
Individual Product Weight (kg)
1.99
Outer Box Weight (kg)
10.05
Outer Box Volume
0.07438
Lumens per Watt (lm/W)
169
Power Factor
0.97
Electric Class
Class I
Depth (mm)
90
Wattage (W)
25
Equivalent Wattage (W)
55
Colour Temperature (K)
4000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
2.26
Single box Height (mm)
1570
Single box Width (mm)
100
Single Box Depth (mm)
100
Single Box Volume
0.0157
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Dura
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
4224
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Product Image

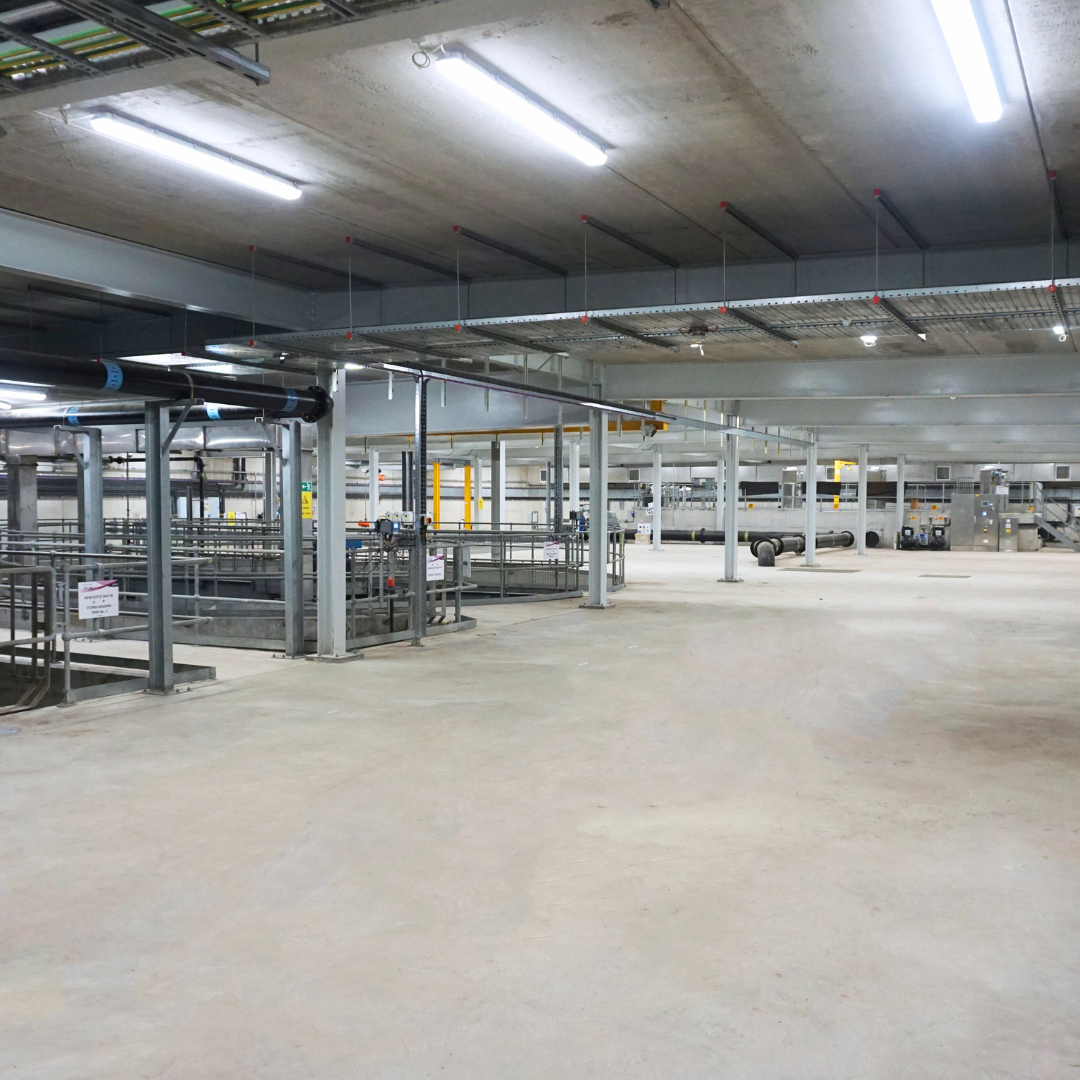

Case Study Image
