Dura Single

Dura 28W LED Anti-Corrosive 6ft Single Batten in Emergency - 4000K

Code
06761
Next Delivery
16/12/2024 - 200 items
Technical Specification
Volts (V)
220/240
Watts (W)
28
Colour Temp (K)
4000
Lumens (lm)
4214
Energy Rating
E

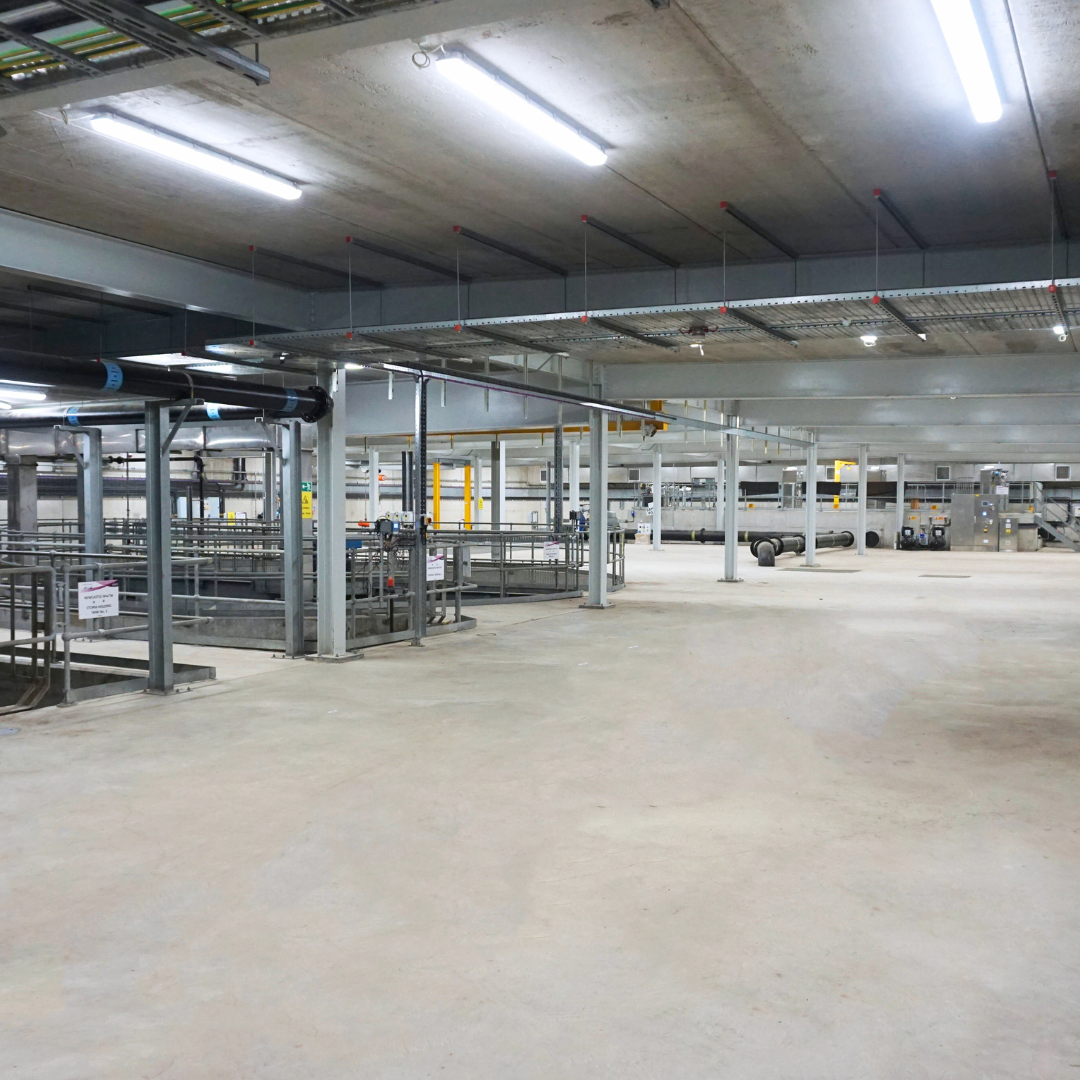

The Dura LED Anti Corrosive Batten is one of BELL’s flagship Luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Download Specification
Full Specification
Downloads
Name
Dura 28W LED Anti-Corrosive 6ft Single Batten in Emergency - 4000K
Volts (V)
220/240
Watts (W)
28
Colour Temp (K)
4000
Lumens (lm)
4214
Life Hours
50000
Beam Angle
145°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
720mA
Energy Consumption (kWh/1000h)
28
IP Rating
IP66
Commodity Code
9405409990
EAN
5013588067612
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.01835
Outer Box Qty
4
Height (mm)
90
Width (mm)
90
Length (mm)
1828
Outer Box Height (mm)
1865
Outer Box Width (mm)
210
Outer Box Depth (mm)
220
Candelas (cd)
1000
Equivalent Watts (W)
63
Single Carton Height (mm)
1835
Single Carton Width (mm)
100
Single Carton Depth (mm)
100
Outer Box Volume
0.86163
Individual Product Weight (kg)
2.59
Single Carton Weight (KG)
2.9
Plastic Packaging Weight (kg)
0.0120
Outer Box Weight (kg)
12.69
Impact Protection
IK10
Energy Rating
E
Lumens per Watt (lm/W)
151
Inner Box Qty
1
Electric Class
1
Power Factor
0.97kW
Driver Integral?
Yes
Emergency Lumen Output (lm)
398
