Arial T-Pro Standard

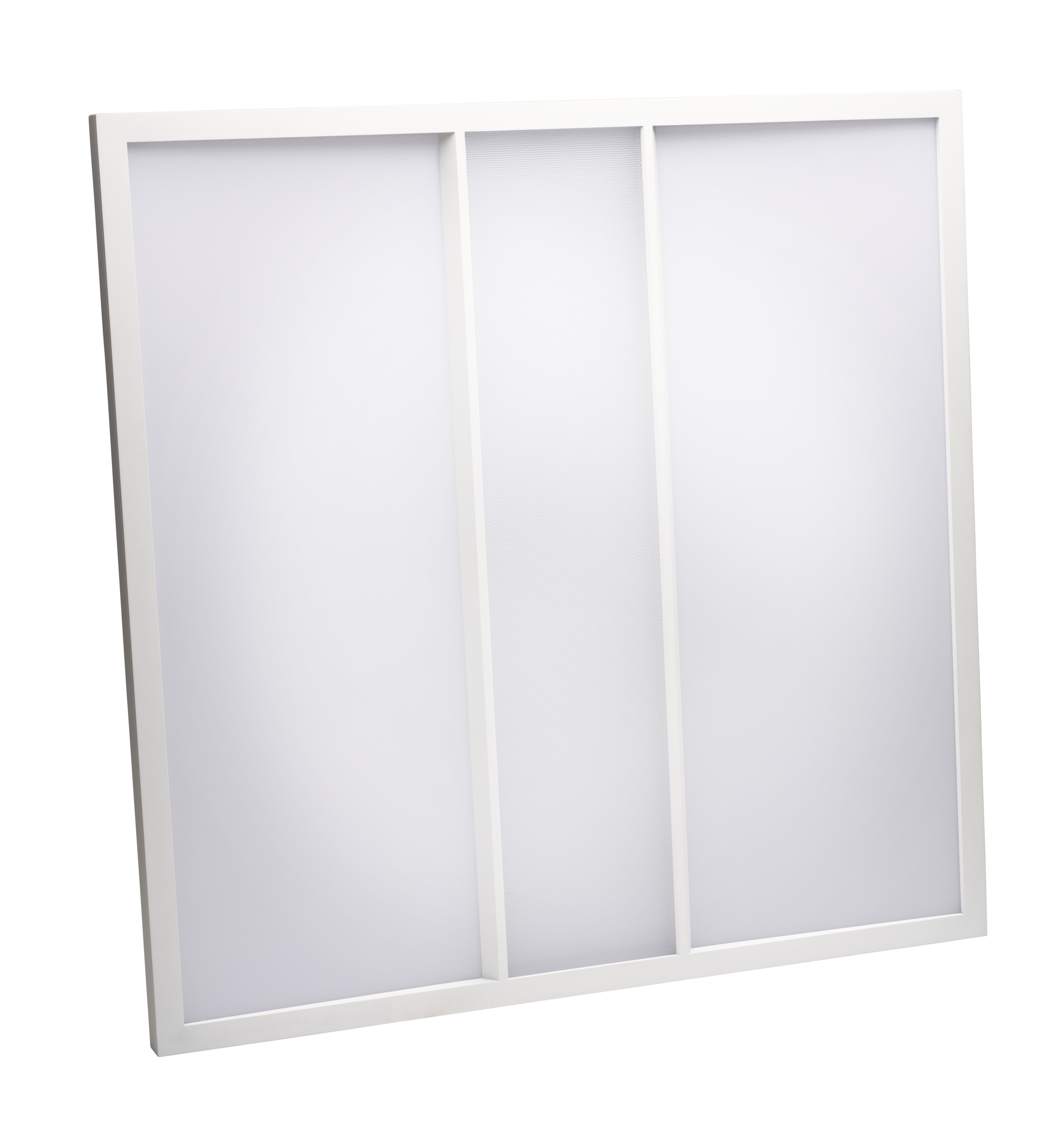

Arial T-Pro 25W LED CCT 600x600 White Panel

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
11404
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

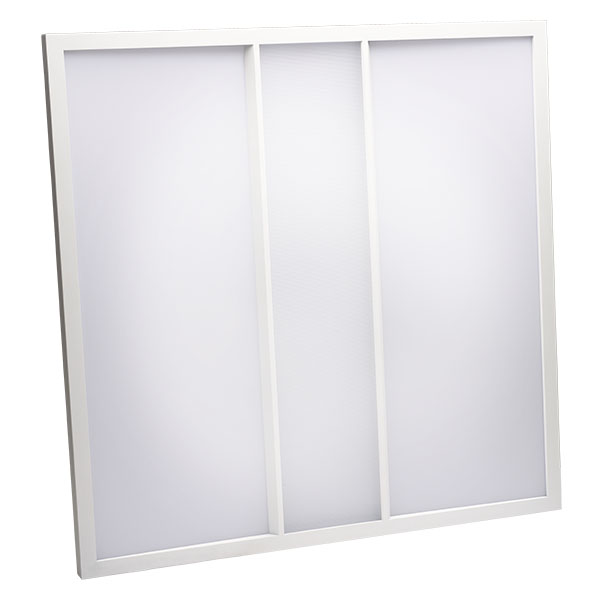

11415 - Arial T-Pro Multi UGR CCT Panel - 600x600mm View product
Technical Specification
Volts (V)
220/240
The Arial T-Pro Backlit LED CCT Panel gives a unique twist on a standard LED panel. The contemporary slimline design and aesthetic light distribution works well in areas that would like to move away from the standard familiar panel we have all become accustomed to.
Quantity
Download Specification
Full Specification
Downloads
Name
Arial T-Pro 25W LED CCT 600x600 White Panel
Volts (V)
220/240
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
25
Height (mm)
595
Width (mm)
595
Depth (mm)
40
EAN
5013588114040
Outer Box Height (mm)
690
Outer Box Width (mm)
455
Outer Box Depth (mm)
685
Outer Box Qty
4
Commodity Code
9405423990
Outer Box Volume
0.21506
Lumens per Watt (lm/W)
106-110
IP Rating
IP20
Wattage (W)
25
Colour Temperature (K)
3000/4000/5000
Minimum Order Quantity
1
Single Box Weight (kg)
3.36
Single box Height (mm)
670
Single box Width (mm)
84
Single Box Depth (mm)
665
Single Box Volume
0.03743
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Panels
EDATA Product Range
Arial T-Pro
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
2650-2750
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years
Linears
No
Skyline Target
No
Sports Halls
No
CFL/HID Alternative
No
Merit Batten
No
Catalogue Page

Instructions
